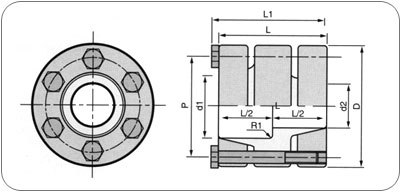

Dimensions (mm) |
|
| PART
No. |
d1 |
d2 |
D |
L |
L1 |
P.C.D
P |
Locking
Bolt
Lock Bolt
|
Torque
Capacity |
Axial
Force Capacity |
Max
Rota-tional |
Bolt
Wrench
Tightening
Torque |
Weight
(g) |
| SizexLxH |
Nm |
Kgf-m |
Nx10² |
Kgf |
r.p.m |
Nm |
Kgf-m |
| P-53-16-16 |
16 |
16 |
53 |
56 |
61.0 |
41.0 |
M6x50x6 |
78.5 |
8.0 |
9.81 |
1000 |
14500 |
17.7 |
1.8 |
0.80 |
| P-53-20-16 |
20 |
16 |
53 |
56 |
61.0 |
41.0 |
M6x50x6 |
78.5 |
8.0 |
9.81 |
1000 |
14500 |
17.7 |
1.8 |
0.76 |
| P-53-20-20 |
20 |
20 |
53 |
56 |
61.0 |
41.0 |
M6x50x6 |
98.1 |
10.0 |
9.81 |
1000 |
14500 |
17.7 |
1.8 |
0.77 |
| P-53-22-20 |
22 |
20 |
53 |
56 |
61.0 |
41.0 |
M6x50x6 |
98.1 |
10.0 |
9.81 |
1000 |
14500 |
17.7 |
1.8 |
0.72 |
| P-53-22-22 |
22 |
22 |
53 |
56 |
61.0 |
41.0 |
M6x50x6 |
118.0 |
12.0 |
9.81 |
1000 |
14500 |
17.7 |
1.8 |
0.72 |
| P-58-25-20 |
25 |
20 |
58 |
58 |
63.0 |
45.0 |
M6x50x6 |
98.1 |
10.0 |
9.81 |
1000 |
12500 |
17.7 |
1.8 |
0.87 |
| P-58-25-22 |
25 |
22 |
58 |
58 |
63.0 |
45.0 |
M6x50x6 |
118.0 |
12.0 |
9.81 |
1000 |
12500 |
17.7 |
1.8 |
0.86 |
| P-58-25-25 |
25 |
25 |
58 |
58 |
63.0 |
45.0 |
M6x50x6 |
127.1 |
13.0 |
9.81 |
1000 |
12500 |
17.7 |
1.8 |
0.84 |
| P-58-20-T |
20 |
￠16
(1/10) |
58 |
64 |
68.5 |
45.0 |
M6x50x6 |
63.7 |
6.5 |
5.88 |
600 |
12500 |
8.83 |
0.9 |
1.10 |
| P-58-22-T |
22 |
￠16
(1/10) |
58 |
64 |
68.5 |
45.0 |
M6x50x6 |
63.7 |
6.5 |
5.88 |
600 |
12500 |
8.83 |
0.9 |
1.10 |
| P-63-30-25 |
30 |
25 |
63 |
60 |
65.0 |
50.5 |
M6x50x6 |
157.0 |
16.0 |
11.8 |
1200 |
12000 |
17.7 |
1.8 |
1.05 |
| P-63-30-30 |
30 |
30 |
63 |
60 |
65.0 |
50.5 |
M6x50x6 |
186.0 |
19.0 |
11.8 |
1200 |
12000 |
17.7 |
1.8 |
1.01 |
| P-68-35-25 |
35 |
25 |
68 |
60 |
65.0 |
56.0 |
M6x50x6 |
157.0 |
16.0 |
11.8 |
1200 |
10000 |
17.7 |
1.8 |
1.14 |
| P-68-35-28 |
35 |
28 |
68 |
60 |
65.0 |
56.0 |
M6x50x6 |
177.0 |
18.0 |
11.8 |
1200 |
10000 |
17.7 |
1.8 |
1.19 |
| P-68-35-30 |
35 |
30 |
68 |
60 |
65.0 |
56.0 |
M6x50x6 |
186.0 |
19.0 |
11.8 |
1200 |
10000 |
17.7 |
1.8 |
1.17 |
| P-68-35-32 |
35 |
32 |
68 |
60 |
65.0 |
56.0 |
M6x50x6 |
206.0 |
21.0 |
11.8 |
1200 |
10000 |
17.7 |
1.8 |
1.15 |
| P-68-35-35 |
35 |
35 |
68 |
60 |
65.0 |
56.0 |
M6x50x6 |
226.0 |
23.0 |
11.8 |
1200 |
10000 |
17.7 |
1.8 |
1.12 |
| P-73-35-42 |
35 |
42 |
73 |
70 |
75.0 |
60.0 |
M6x50x6 |
226.0 |
23.0 |
12.7 |
1300 |
9000 |
17.7 |
1.8 |
1.51 |
| P-73-38-38 |
38 |
38 |
73 |
70 |
75.0 |
60.0 |
M6x50x6 |
245.0 |
25.0 |
12.7 |
1300 |
9000 |
17.7 |
1.8 |
1.53 |
| P-73-42-42 |
42 |
42 |
73 |
70 |
75.0 |
60.0 |
M6x50x6 |
275.0 |
28.0 |
12.7 |
1300 |
9000 |
17.7 |
1.8 |
1.41 |
| P-78-48-48 |
48 |
48 |
78 |
70 |
75.0 |
66.0 |
M6x50x6 |
461.0 |
47.0 |
18.6 |
1900 |
8000 |
17.7 |
1.8 |
1.50 |
|
|
|
